PH Controller

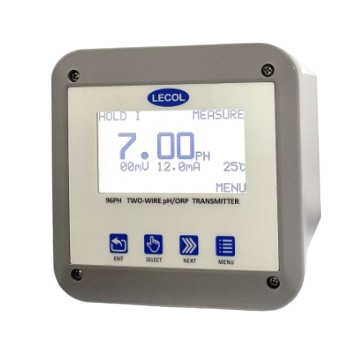

LECOL 96PH pH/ORP Transmitter
- Robust enclosure
- Large LCD display
- Friendly interface
- Easy to use menus
- Multiple mounting methods
- Two-Wire loop power
LECOL 96 series was designed with the user in mind. Measurement information is easily read on the large liquid crystal display (LCD).

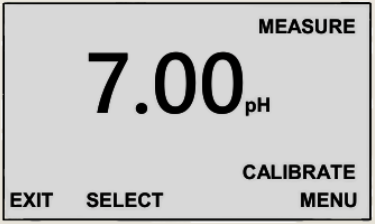

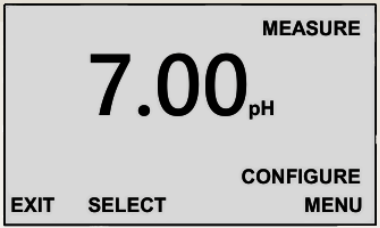

The graphic LCD screen can display multiple parameters simultaneously, including pH value, input mV signal, temperature, mA output signal, and smart function keys.
96 series transmitter’s keypad interface is user friendly. The smart function keys can be used to navigate to three submenus: “calibrate” , “output”, and “ configure”.
The “calibrate” submenu is for sensor and output signal calibration. During calibration, output signals can be paused in “Output”. All measuring parameters can be set through “Configure”.
Enclosure
The powder coated alloy housing meets NEMA 4X and IP54 requirements for use in harsh, industrial environments. The metal housing suppresses noise and prevents the interference caused by electromagnetic environment.
Mounting Methods
- Pipe, wall, and panel mounting options are available to provide flexibility in different installation scenarios.
